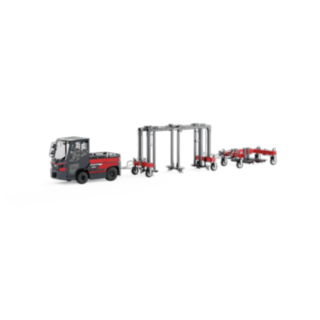

Tugger Trains LT16 Ch/BMh

Heavy-duty outdoor tugger train

Indestructible and versatile outdoors

With their tough construction and large outdoor tyres, the LT16 Ch/BMh tugger train trailers are the perfect solution for transporting goods outdoors. They are designed to travel long distances and can cope with even the most challenging ground conditions. Thanks to the robust two-axle-design, the tugger trains can transport loads of up to 1.6 tonnes. Two different trailer variants are available: the Ch frame with forks and BMh frame with adjustable middle supports. Both variants are equipped with a hydraulic lifting function. With both trailers, different types of load can be transported on corresponding trolleys, for example pallets, pallet cages, or larger containers. The optional overrun brakes enable maximum performance, even on steep terrain.

Characteristics

Safety

To secure the goods being transported, the LT16 Ch/BMh are equipped with an immobiliser. It prevents operators from moving the tugger train with the loading frame lowered. The trailer lowering mechanism is deactivated during operation. Each loading frame has mechanical load locking to hold the load securely in place during travel. The frames are equipped with heavy-duty super elastic wheels (SE wheels), measuring 368 mm in diameter and 115 mm in width. They absorb shocks and vibrations and ensure that the LT16 Ch/BMh can also handle extremely uneven ground and potholes. Optional overrun brakes mean that the vehicle can be operated safely on steep slopes. Equipment options for lighting and weather protection provide additional safety and protection.

  • Immobiliser when loading frames are lowered
  • Deactivated lowering mechanism while operating
  • Mechanical load locking for secure hold
  • Large, heavy-duty SE wheels for outdoor use
  • Optional overrun brakes for steep slopes

Ergonomics

The ergonomic features of the LT16 Ch/BMh make load handling as comfortable as possible. The loading frames are loaded and unloaded at ground level, which relieves the operator and reduces the risk of physical strain from repeatedly lifting and lowering the load. The loading frames are locked automatically after insertion. The unlocking mechanism is mounted at an ergonomic height and can be operated conveniently by foot. This minimises the strain on the operator, particularly when they are having to unlock frequently. The Ch frame for the tugger train has an ergonomic ejection mechanism that pushes the load away from the back of the fork as soon as the operator releases the lock by foot.

  • Trailers loaded and unloaded at ground level
  • Automatic loading frame locking
  • Easy to unlock by foot
  • Ch frame with ergonomic ejection mechanism

Handling

The trailers feature mechanical all-wheel steering, giving the LT16 Ch/BMh high-precision control. The tugger trains therefore boast small turning circles, directional stability, and tipping stability. The automatic lifting function saves a lot of time: If the operator gets into the towing vehicle, the loading frames are automatically raised for transport. If they leave the truck, these are lowered again. The BMh frames can be loaded and unloaded from both sides, making the process flexible and convenient. The middle supports can be moved to transport different sized loads with one frame. This is also possible with the Ch frames thanks to the adjustable forks. Optional connecting hoses with stopcock ensure that the trailers can be unhitched from the towing vehicle, even when lifted.

  • Precision control with all-wheel steering
  • Load frame lifts and lowers automatically
  • BMh frame: Loading and unloading from both sides
  • Trailer can optionally be unhitched when raised

Servicing

The LT16 Ch/BMh are optimised for reliability and low maintenance. The simple frame design of the trailers requires only a few components, which minimises service costs and keeps maintenance costs low. The trailers’ two-axle-design is easily accessible for the service technician. The tiller and coupling system is almost wear-free. In addition, the maintenance intervals for the trailers and towing vehicle can be synchronised, reducing downtimes in the process.

  • Simultaneous maintenance for trailers and towing vehicle
  • Simple frame design with small number of components
  • Easy access for quick servicing
  • Almost wear-free components

Videos & Images

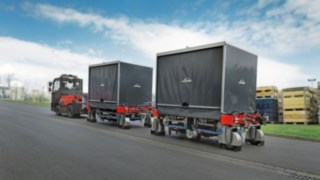

LT16 Ch/BMh from Linde Material Handling

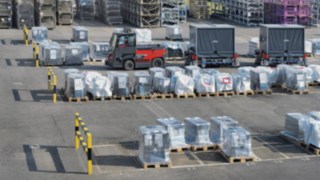

LT16 Ch/BMh from Linde Material Handling
LT16 Ch/BMh from Linde Material Handling
Trolleys in a range of designs for a wide variety of loads
LT16 Ch/BMh from Linde Material Handling
LT16 Ch/BMh from Linde Material Handling
LT16 Ch/BMh from Linde Material Handling
Trolleys in a range of designs for a wide variety of loads

Technical Data

Model Load capacity/Load Lift Lift function Overall length Overall width
LT16-BMh 1.6 (t) - (mm) - - (mm) - (mm)
LT16-Ch 1.6 (t) 80 (mm) Hydraulic 4218 (mm) 1540 (mm)

Optional Equipment

Tarpaulin roof protects the goods

Weather protection

A tarpaulin roof, which can be pulled over the frame, is available for both the Ch and BMh frame. It can be opened on one side for the Ch frame and on both sides for the BMh frame.

Rear lights via four-function LED taillight set

Rear lights

There is a four-function LED rear light set with magnetic holder and two lights (indicator, rear lights, brake lights, licence plate light) available in clear glass. The casing is waterproof and certified to e4 and ISO 1724.

Flashing light serves as a warning light in darkness

Rotating beacon

There is a flashing light on the trailer, which serves as a warning light so that the tugger train is visible, even in the dark.

Mechanical brake system with drum brake

Overrun brake

Mechanical braking system combined with a drum brake for travelling on ramps and particularly downhill stretches. This means that the vehicle is safe to operate, even with the maximum load.

Tyres with mud flaps prevent contamination indoors

Mud flaps

The tyres can be equipped with mud flaps to avoid contamination in indoor areas.

Frame with light, non-marking wheels

Light tyres

The frames are equipped with dark heavy-duty SE wheels (368x115) as standard. Light, non-marking wheels are also available as an option.

Additional lifting height

The standard lifting height of the trailers is 80 mm. The frames can be supplied with a lifting height of 115 mm for special applications.

Walk-through protection between the frames prevents people from stepping over the trailer tiller

Walk-through protection

The space between the frames can be secured with a safety strap to prevent people from stepping over the trailer tiller. The strap can also be retrofitted.

Increased Ch frame payload of up to four tonnes

Increased payload

It is possible to increase the payload of the Ch frame to up to four tonnes.

Connecting hose with stopcock

Connecting hose with stopcock

If the stopcock is closed when the frames are lifted, the frames will remain in this position to make it easy to unhitch the towing vehicle.

Trolleys in a range of designs for a wide variety of loads

Trolleys

Linde has a range of trolley designs for a wide variety of loads for all tugger train models. They can be equipped with modular racking superstructures, for example.

Tugger train guidance system coordinates transport jobs and provides optimal routes

Tugger train controller

The tugger train guidance system coordinates the operating orders and provides the operators with the optimal routes. The software dashboard shows all essential information at a glance and can be used to generate analyses for process optimisation.
