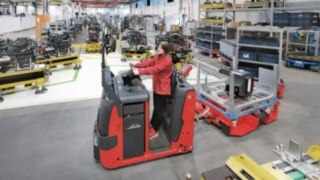

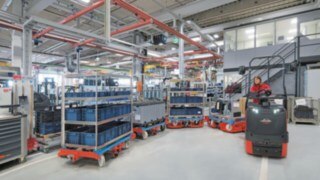

Quick and agile in halls
Thanks to their compact design, the LT06 – LT10 M / LT10 W tugger train trailers are ideal for transporting goods indoors. They are primarily used to deliver raw material from the warehouse to different assembly lines within the same hall. Two different trailer variants are available (M frame and W frame), based on a one-axle-design with two wheels. This makes them extremely narrow and agile, which is particularly advantageous in narrow aisles. The low service weight of the trailers means that the towing vehicle can travel quickly and the vehicle as a whole is easier to manoeuvre. The LT06 – LT10 M / LT10 W tugger train trailers are a cost-effective solution for standard Euro pallets, industrial pallets, and smaller container sizes.
Characteristics
Safety
The LT06 – LT10 M / LT10 W have a variety of safety features to ensure safe operation. An automatic start interlock prevents the tugger train from moving with the loading frame lowered. The trailer lowering mechanism is also deactivated while operating. A patented load securing system reliably holds the load. The W frame also boasts a redundant load securing system. There is also the option of replacing the hydraulic lifting function with an electric lifting mechanism. This makes the vehicles safer and quieter during operation. The foot protection reduces the risk of injury. It comes with the W frame as standard and is available as an option for the M frame. Additional optional equipment, such as safety flags, walk-through protection, and weather protection, is available on request.
- Immobiliser when loading frames are lowered
- Deactivated lowering mechanism while operating
- Patented securing system for loading frames
- Redundant load-securing system for the W frame
- Optional electric lifting mechanism
Ergonomics
The LT06 – LT10 M / LT10 W are designed for maximum comfort. The M frames are loaded and unloaded at ground level. This relieves the operator and reduces the risk of physical strain from repeated lifting. The W frame has a sloping platform that makes it easier for the operator to insert and remove the load carriers. The loading frames lock automatically, while the unlocking mechanism is conveniently mounted at an ergonomic height and can be operated by foot. In addition, the M frame for the tugger train trailers boasts an ergonomic ejection mechanism that moves the load away from the rear toward the operator as soon as they release the lock.
- Automatic loading frame locking
- Easy to unlock by foot
- Ergonomic ejection mechanism for the M frame
- M frame: Trailers loaded and unloaded at ground level
- W frame: Sloping platform makes it easier to insert the load carriers
Handling
The LT06 – LT10 M / LT10 W trailers are available in two different frame variants: As an entry-level solution, the M frames are suitable for transporting lighter loads on routes with the same loading and unloading side. The W frames, however, can be loaded and unloaded from both sides, making them very flexible. The compact one-axle-design on two wheels makes the loading frames particularly manoeuvrable and enables dynamic driving manoeuvres, even in confined spaces. Thanks to the low weight of the load frames, the towing vehicle can cover distances at higher speeds. The load frame lifts and lowers automatically, meaning that loads can be handled quickly. When the operator gets into the towing vehicle, the frames are raised for transport. When they leave the truck, these are lowered again. The loading frames are equipped with smooth-running positioning aids, making the trolleys quick and easy to manoeuvre.
- Compact one-axle-design for use in confined spaces
- Low service weight enables faster speeds
- Load frame lifts and lowers automatically
- Smooth-running positioning aids for trolleys
- W frame: Convenient loading and unloading from both sides
Servicing
The LT06 – LT10 M / LT10 W offer high levels of availability with minimal maintenance. The maintenance intervals of towing vehicle and loading frame are synchronised so that maintenance work can be planned and executed efficiently. The simple frame design with a small number of parts reduces the amount of servicing required, resulting in cost-efficient maintenance. The loading frames can be converted to an electric lifting mechanism on request. Only one lift motor is required for this, which makes maintenance even easier. The mechanical locking mechanism and the tiller system are easy to service and maintain.
- Simultaneous maintenance for trailers and towing vehicle
- Simple frame design with small number of components
- Low-maintenance tiller system and locking mechanism
- Optional electric lifting mechanism with lift motor
Videos & Images
Technical Data
| Model | Load capacity/Load | Lift | Lift function | Overall length | Overall width |
|---|---|---|---|---|---|
| LT06-M | 0.6 (t) | 40 (mm) | Hydraulic/electric | 1953 (mm) | 1007 (mm) |
| LT10-M | 1.0 (t) | 40 (mm) | Hydraulic/electric | 1953 (mm) | 1007 (mm) |
| LT10-W | 1.0 (t) | 40 (mm) | Hydraulic/electric | 2069 (mm) | 1070 (mm) |
Optional Equipment
-
Weather protection
-
Rear lights
-
Safety flags
-
Accommodating multiple load carriers
-
Foot protection for M frame
-
Electric lifting mechanism
-
Walk-through protection
-
Trolleys
-
Tugger train controller
Weather protection
A tarpaulin roof, which can be pulled over the frame, is available for both the M and W frame. It can be opened on one side for the M frame and on both sides for the W frame.
Rear lights
There is a four-function LED rear light set with magnetic holder and two lights (indicator, rear lights, brake lights, licence plate light) available in clear glass. The casing is waterproof and certified to e4 and ISO 1724.
Safety flags
Two safety flags ensure that the loading frames are clearly visible at all times – especially when operating with little or no load.
Accommodating multiple load carriers
In the standard version, the M and W frames accommodate one trolley. M frames for accommodating two trolleys and W frames that can accommodate three trolleys are also available as an option.
Foot protection for M frame
An additional fixture on the M frame prevents operators from trapping their foot in the frame while working. This guard is available as standard on the W frame due to its design.
Electric lifting mechanism
The loading frames are available with a hydraulic lifting system as standard. They can also be equipped with an electric lifting mechanism as an option.
Walk-through protection
The space between the frames can be secured with a safety strap to prevent people from stepping over the trailer tiller. The strap can also be retrofitted.
Trolleys
Linde has a range of trolley designs for a wide variety of loads for all tugger train models. They can be equipped with modular racking superstructures, for example.
Tugger train controller
The tugger train guidance system coordinates the operating orders and provides the operators with the optimal routes. The software dashboard shows all essential information at a glance and can be used to generate analyses for process optimisation.
