Effective combination of stacking, picking and transporting

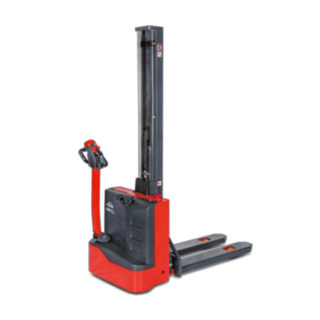

The electric pallet stackers ML 10, MM 10 and MM 10i are very flexible. They are the perfect solution for storage and retrieval, as well as for stacking goods. They are also ideal for use as an ergonomic order picking platform or for transporting lightweight goods. During order picking, the operator lifts their work surface to a comfortable height, which protects their back. During the transport of goods, an initial lift on the MM 10i provides more ground clearance. Unevenness or ramps are not a problem. Various mast heights are available to adapt trucks based on their area of application. The long tiller arm, automatic throttling of driving speed and hand guards all ensure high levels of safety. The ML 10, MM 10 and MM 10i have a maximum load capacity of 1000 kilograms.
Characteristics
Safety
The ML 10, MM 10 and MM 10i are fully optimised when it comes to operator protection. To avoid accidents, the trucks automatically reduce their driving speed to 2 km/h when operating above a lifting height of 400 mm. The long tiller arm sits low on the truck, ensuring that the operator always remains at a safe distance from the pallet stacker. Thanks to the shape of the tiller head, the operator’s hands are protected at all times. The ML 10, MM 10 and MM 10i brake automatically when the operator releases the butterfly button. The same applies when the belly switch is pressed. An effective parking brake holds the truck securely on slopes and releases automatically when it is started up again. A low-lying metal skirt protects the feet.
- Speed reduction above 400 mm lift height
- Long tiller for safety distance
- Belly switch on tiller head stops vehicle to prevent entrapment
- Effective parking brake
- Low-lying metal skirt protects feet
Ergonomics
Before picking, the operator can lift the pallet to a comfortable working height. This relieves strain on the back when picking up and setting down the goods. The ergonomically shaped tiller handle makes it very easy to control the operating and lifting movements of the truck. All functions can be controlled with just one hand, be it the left or the right. The trucks have a creep speed function for use in narrow aisles. This makes it possible to move the pallet stackers with an upright tiller at low speeds.
- Ideal picking working height
- Comfortable, ergonomic tiller handle
- One-handed operation possible
- Creep speed function for more manoeuvrability
Handling
The ML 10, MM 10 and MM 10i have powerful electric motors that guarantee a transport speed of up to 4.5 kilometres per hour. In addition, they feature a robust chassis and a reinforced fork structure for the effective transportation of loads up to a total weight of 1000 kilograms. The built-in charger is also important for performance: Operators can charge the truck anywhere so that it is quickly available again. When the battery is fully charged, the trucks work non-stop for up to three hours. A display informs the operator about operating hours and battery level.
- Reliable drive unit
- Robust chassis and reinforced fork structure
- Built-in charger
- Up to three hours of uninterrupted work
- Operating hours display
Servicing
When it comes to servicing, all the truck’s main components can be easily reached by simply removing the cover. The robust DC drive motor can be used for a long time before maintenance is required. This reduces service costs. The battery is also maintenance-free. The battery control ensures that the lifting function of the truck is switched off when there is only 20 percent battery capacity remaining. This discharge protection increases the service life of the battery.
- Main components easily accessible
- Low-maintenance motor reduces service costs
- Maintenance-free battery
- Protection against complete discharge
Technical Data
| Model | Load capacity/Load | Lift | Travel speed, with/without load | Turning radius | Battery voltage/rated capacity (5h) |
|---|---|---|---|---|---|
| ML10 | 1.0 (t) | 2927 (mm) | 4.5 / 4.8 km/h | 1399 (mm) | 2x 12 / 125 (V)/(Ah) o. kWh |
| MM10 | 1.0 (t) | 1517 (mm) | 4 / 4.5 km/h | 1337 (mm) | 2x 12 / 85 (V)/(Ah) o. kWh |
| MM10i | 1.0 (t) | 1513 (mm) | 4 / 4.5 km/h | 1500 (mm) | 2x 12 / 85 (V)/(Ah) o. kWh |
Optional Equipment
Various mast lift heights
Different mast heights are available for both electric pallet stackers. This means the truck can be adapted for a particular application.
