Quick and nimble through narrow aisles

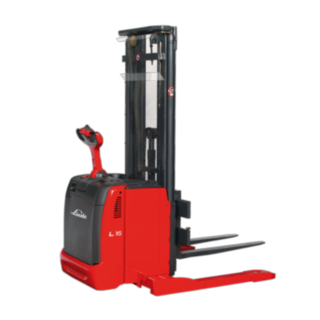

The L14 – L16 AS/AS AP electric pallet stackers are perfectly suited for quick, efficient pallet handling in tight spaces. The compact dimensions and small steering radius of the straddle stackers enable a high handling performance in the tightest of spaces. With two different versions available, the trucks can be adapted to suit the exact requirements in the warehouse. The version without an operator platform is more convenient for narrow aisles in high rack warehouses and block warehouses. The foldable operator platform version offers greater comfort over long distances. Both models put the operator's safety first as their feet are protected by the low chassis with rounded corners. Thanks to the powerful 2.3-kW AC engine, the straddle stackers can move loads of between 1400 and 1600 kg at top speeds of up to 10 km/h (for foldable platform version). The adjustable straddle legs enable the transport of closed pallets and load carriers with different widths. The electric steering also helps to achieve a high handling speed, allowing the truck to be manoeuvred effortlessly and with the utmost precision.
Characteristics
Safety
At high speeds and turnover rates, the L14 – L16 AS/AS AP puts the operator's safety first. All the wheels are therefore located inside the chassis, which protects the operator’s feet. And there are no corners or edges on which the operator could injure himself. The electromagnetic, load-dependent braking system reacts instantly whenever the operator leaves the platform, presses the emergency stop button or releases the operating switch. The truck automatically reduces its speed when cornering.
- Electromagnetic, load-dependent brake
- Automatic speed reduction when cornering
- All-round protection for the operator thanks to low, rounded chassis
Ergonomics
Both versions of the L14 – L16 AS/AS AP electric pallet stacker are ahead of the game when it comes to ease and efficiency of operation. All operating and lifting functions can be operated with just one hand – either the left or the right – without the operator having to let go of the tiller. That makes load handling easier and quicker. The electric steering allows the steering resistance to be individually adjusted, enabling effortless transportation and precise manoeuvres. In the version of the truck with the operator platform, the rubber-mounted damped platform reduces the physical strain on the operator and therefore prevents fatigue.
- Electrical steering unit
- One-handed operation with tiller head
- Damped operator platform
- Electromagnetically cushioned active side stabilisers
Handling
With its ISO forks and adjustable straddle legs, the L14 – L16 AS/AS AP is suitable for handling closed pallets and load carriers with different widths. Thanks to the Linde OptiLift® control, the operator can use millimetre precision when lifting and lowering the mast of the truck, which allows for effortless pallet handling. With the powerful 2.3-kW AC engine, the straddle stackers reach speeds of up to 10 km/h (for foldable platform version). This enables loads of up to 1600 kg to be transported and stored quickly and efficiently.
- ISO forks and adjustable straddle legs for handling closed pallets and load carriers with different widths
- Effortless folding up and down of the platform
- Precise lifting and lowering
- Proportional lift mast control
- 2.3-kW AC engine for speeds of up to 10 km/h (for foldable platform version)
Service
The maintenance-free 2.3-kW three-phase motors guarantee high availability. In the event that repairs are needed, service technicians can read out and check the system data on their notebook via the CAN bus connection. All the important components are easily accessible.
- Maintenance-free 2.3-kW three-phase motor
- CAN bus system for quick and easy diagnosis
- Fast servicing thanks to easily accessible components
Technical Data
| Model | Load capacity/Load | Lift | Travel speed, with/without load | Turning radius | Battery voltage/rated capacity (5h) |
|---|---|---|---|---|---|
| L14AS | 1.4 (t) | 2924 (mm) | 6 / 6 km/h | 1741 (mm) | 24 / 345/375 (V)/(Ah) o. kWh |
| L14AS AP | 1.4 (t) | 2924 (mm) | 8 / 10 km/h | 1732 (2105) (mm) | 24 / 345/375 (V)/(Ah) o. kWh |
| L16AS | 1.6 (t) | 2844 (mm) | 6 / 6 km/h | 1741 (mm) | 24 / 345/375 (V)/(Ah) o. kWh |
| L16AS AP | 1.6 (t) | 2844 (mm) | 8 / 10 km/h | 1732 (2105) (mm) | 24 / 345/375 (V)/(Ah) o. kWh |
Optional Equipment
Alternative drive wheels
The customer can choose from a variety of drive wheels to suit the operation environment – for example, wheels made from non-marking polyurethane or wet-grip material for use on damp surfaces.
Cold store variant down to -35°
The cold store variant guarantees full availability and performance of the pallet stacker down to minus 35 degrees Celsius.
Safety speed – pedestrian truck
Automatic acceleration and deceleration: the travel speed adapts to the tiller position: the more upright, the slower it goes.
