High throughput performance even in confined spaces

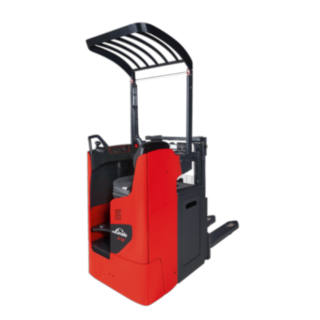

The D12 R double pallet stacker transports two pallets of up to 1000 kg each at the same time and achieves a speed of up to 10 km/h with its 3 kW three-phase AC engine. This makes it particularly suitable for fast transport over medium and long distances where high throughput rates are required. Thanks to the initial lift, the vehicle is also suitable for loading and unloading trucks. Precise control enables particularly safe, comfortable and productive handling. Thanks to its compact chassis and excellent manoeuvrability, the D12 R can be manoeuvred safely and quickly, even in confined spaces. The high seating position, which is perpendicular to the direction of travel, provides the operator with the best possible visibility of the loads and the surroundings.
Characteristics
Safety
The design of the truck ensures that the operator is safely enclosed within its contour at all times. Additional safety against falling loads is provided by an overhead guard with plexi-glass pane or optionally with a protective grille. Safe handling is also supported by automatic speed reduction during cornering and a brake that engages automatically as soon as the operator releases the drive button. If necessary, an easily accessible emergency stop interrupts all vehicle functions and activates the electromechanical brake. To protect the vehicle, the D12 R is equipped with a pallet stop to prevent the pallets from damaging the lifting components.
- Operator's overhead guard, combined with plexi-glass or protective grille
- Speed reduction while cornering
- Automatic brake functions
- Easy accessible emergency stop
Ergonomics
Various assistance systems make steering easier for the operator. The steering torque of the D12 R adapts automatically to the driving speed and the radius of the corner. The truck also automatically reduces speed depending on the steering angle. The comfortable one-handed 'Tip Control' combines all control functions into one ergonomic joystick unit. The surface on which the hand rests can be individually adjusted and therefore ensures a fatigue-free, ergonomic hand position.
- Automatic assistance systems
- Comfortable single-hand control
- Ergonomic hand position
Handling
The D12 R is a highly efficient and productive pallet stacker. The powerful 3 kW three-phase AC engine enables precise control at speeds of up to 10 km/h with a total load weight of 2000 kg. The D12 R owes its high handling capacity to the simultaneous double-deck transport of two pallets, each weighing a maximum of 1000 kg. The truck is also suitable for use as a regular pallet stacker for loads up to 1200 kg. The convenient single-handed control system ensures precise and efficient control of the double stacker in any driving situation, even in confined spaces. Access to transport documents and other paperwork is also particularly convenient thanks to an easy-to-access pouch integrated below the seat.
- Powerful engine
- Suitable for narrow aisles
- Single-handed control
- Easily accessible document pouch
Service
All components of the D12 R are easily accessible for maintenance. In addition, maintenance-free technologies are used to increase vehicle availability and reduce servicing costs. All required system data can also be accessed quickly and reliably via notebook by means of a modern CAN bus connection. This makes maintenance work particularly efficient.
- Easy maintenance access
- Maintenance-free components
- High vehicle availability
- Fast diagnosis via CAN bus connection
Technical Data
Model | Load capacity/Load | Lift | Travel speed, with/without load | Turning radius | Battery voltage/rated capacity (5h) |
---|---|---|---|---|---|
D12R | 1.2 / 2.0 (t) | 2344 (mm) | 10 / 10 km/h | 2012 (mm) | 24 / 345/375 [23/205] (V)/(Ah) o. kWh |
Optional Equipment
-
Heated leather seats
-
Fleet management
-
Level compensation
-
Lateral battery change
-
Terminal support
-
Soft landing
-
Warning light
Heated leather seats
Leather seats and adjustable seat heating increase operator comfort when used in cold storage or in cold environments.
Fleet management
How and by whom are the individual forklifts used? What does the vehicles' consumption data look like and is every single vehicle fit to drive? With its combination of hardware and software, the connect fleet management system from Linde provides the answers.
Level compensation
The system offsets any unevenness in the floor and ensures that all wheels continuously touch the ground. This preserves the stability of the vehicle.
Lateral battery change
The lateral battery removal with roller bearings and the ergonomic lever on 3 PzS and 4 PzS batteries enables quick replacement – ideal for use in multiple shifts.
Terminal support
The truck has a 24-volt connection for connecting a data terminal.
Soft landing
An automatic reduction in travel speed when lowering the forks makes load handling particularly efficient and safe.
Warning light
A flashing light on the operator's overhead guard warns people in the vicinity that the vehicle is approaching.
