Flexibility with double lifting power

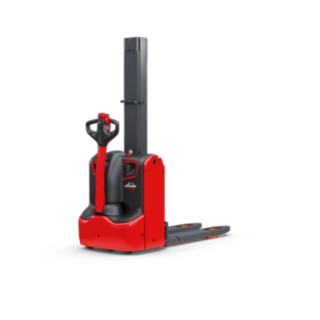

The pedestrian double stacker D08 M is designed for fast transport over short distances, stacking applications, loading and unloading trucks and occasional order picking. It can move two pallets at the same time and is the ideal choice for handling goods in warehouses, for last-mile deliveries as well as for use where space is limited, such as in supermarkets. The forklift’s monomast ensures improved visibility of the load and surroundings and makes order picking or shelf replenishment easy. With a maximum lift height of 1590 mm and a compact design, the D08 M enables efficient and easy manoeuvring in the tightest of spaces. The OptiLift assistance system ensures precise load handling. In addition, the robust construction and the deep-drawn steel apron protect the forklift and the operator from damage.
Characteristics
Safety
The D08 M is characterised by comprehensive safety features that ensure the protection of the operator. A long, low-mounted tiller arm provides a generous safety distance between operator and forklift, minimising the risk of injury. The low-profile chassis covers the wheels to protect the operator’s feet and hands from injuries by the tiller head. The creep speed function and the Linde OptiLift assistance system ensure safe manoeuvring in confined spaces. The optional SafetySpeed function adjusts the travel speed proportionally to the tiller angle and stops the forklift automatically as soon as the tiller is in a vertical or horizontal position. In addition, a start-off assistant prevents the truck from rolling backwards when starting on gradients.
- Long, low-set tiller arm
- Low-profile chassis for foot protection
- Hand guard on the tiller head
- Safe manoeuvring in confined spaces
- Start-off assistant for gradients
Ergonomics
The D08 M is optimised for user-friendliness in every respect. The ergonomic tiller head makes it easy to control the operating and lifting movements. All operating functions are easily accessible and can be operated by either hand - even wearing gloves poses no problems. The electric power steering, creep speed function and the optional SafetySpeed function (where the speed adjusts proportionally to the tiller angle) enable easy manoeuvring in tight and hard-to-reach areas. The central and low-mounted tiller ensures ideal positioning of the operator and further improves working comfort.
- Ergonomic tiller head
- Single hand operation for all functions
- Even controllable wearing gloves
- Easy handling in confined areas
- Working comfort due to long, low-set tiller arm
Handling
Thanks to the OptiLift assistance system, the D08 M guarantees responsive and precise handling when lifting and lowering the load. The compact design of the forklift ensures maximum manoeuvrability in confined spaces. A maximum speed of up to 5 km/h enables fast and effective work, both laden or unladen. The monomast of the D08 M gives the operator optimum visibility of the surroundings, which contributes to precise handling in a wide variety of work situations and makes order picking noticeably easier. To facilitate manoeuvring in confined spaces, the double stacker is equipped with a creep speed function. The D08 M is available with lithium-ion batteries and can also be optionally equipped with an on-board charger for fast intermediate charging.
- Precise load handling with OptiLift
- Speed up to 5 km/h
- Creep speed function for narrow areas
- Monomast ensures better visibility
- Optional Li-ION on-board charger
Service
The robust design and the maintenance-free, moisture and dust-proof AC motor ensure minimal service costs and a high level of reliability. A stable chassis and a tiller arm with steel insert also contribute to the forklift’s durability and resistance. The CAN bus structure enables fast service processes and reliable forklift diagnostics by ensuring easy access to all relevant data. In addition, all important service components are easily accessible, allowing maintenance and repair work to be carried out quickly and effectively.
- Robust design for high availability
- Maintenance-free AC motor
- Steel-reinforced tiller arm
- Easily accessible service components
- CAN bus structure for fast diagnostics
Technical Data
| Model | Load capacity/Load | Lift | Travel speed, with/without load | Turning radius | Battery voltage/rated capacity (5h) |
|---|---|---|---|---|---|
| D08M | 1.8 / (0.8 + 1.0) (t) | 1590 (mm) | 5 / 5 km/h | 1512 / 1575 (mm) | 24 / 62 (125) (V)/(Ah) o. kWh |
Optional Equipment
Integrated charger
The battery can be charged quickly and easily with the integrated charger.
Cold store variant
The cold store variant guarantees full operational readiness and performance of the forklift down to minus 35 degrees.
Active foot bumper
An active foot bumper that registers foot contact, stops the forklift, and protects the operator, especially in confined spaces.
Autolift
During loading, the forklift automatically adjusts the picking lift in proportion to the load height. The picking height always remains ideal for the operator when the goods on the pallet are stacked up high.
SafetySpeed
The SafetySpeed function regulates the driving speed in proportion to the tiller position: the smaller the tiller angle, the lower the operating speed.
