Up to two tons, up to six metres high, and mostly in narrow aisles with little space for manoeuvring where time is of the essence – the perfect job for the pallet stackers from Linde Material Handling. When transporting, loading, unloading, and storing goods, Linde pallet stackers effortlessly stack heavy loads on top of each other, on shelves, or in truck loading areas. This makes them indispensable in small warehouses and outdoor operations, as well as in large warehouses for transporting heavy and bulky goods, depending on the version used. Linde has the ideal truck for every transport route, load capacity, and lifting height.

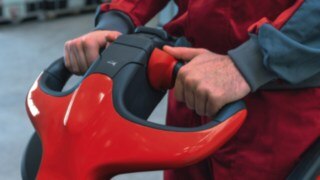

The ergonomic tiller head gives the operator easy access to all control elements and supports intuitive and efficient operation of the truck. Thanks to the low articulated tiller on the pedestrian trucks, the operator always moves at a safe distance from the truck. The Linde Load Management assistance system provides an additional layer of Warehouse safety: It indicates when the load capacity is approaching the limit, optimizes the travel speed according to the work situation, and displays the maximum storage height.
Pallet stackers fall into three categories: manual, semi-manual, and fully electric. Manual – also known as hydraulic pallet stackers – use lifting hydraulic systems, which means that a lot of physical effort is required to operate them. Semi-electric pallet stackers have a lift motor, but transport is manual. Electric pallet stackers have both a lift motor and a drive motor. Linde Material Handling pallet stackers are all fully electric, with no exceptions.
Pedestrian and platform: Pallet stackers from Linde

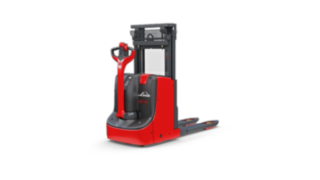

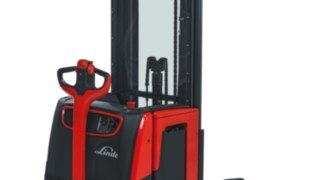

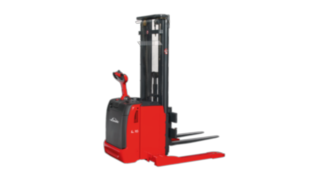

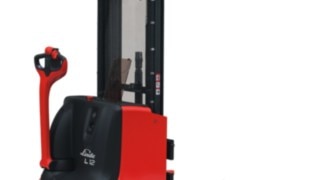

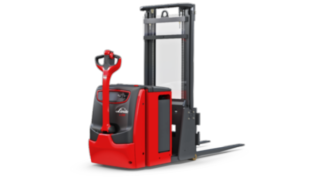

Pedestrian pallet stackers

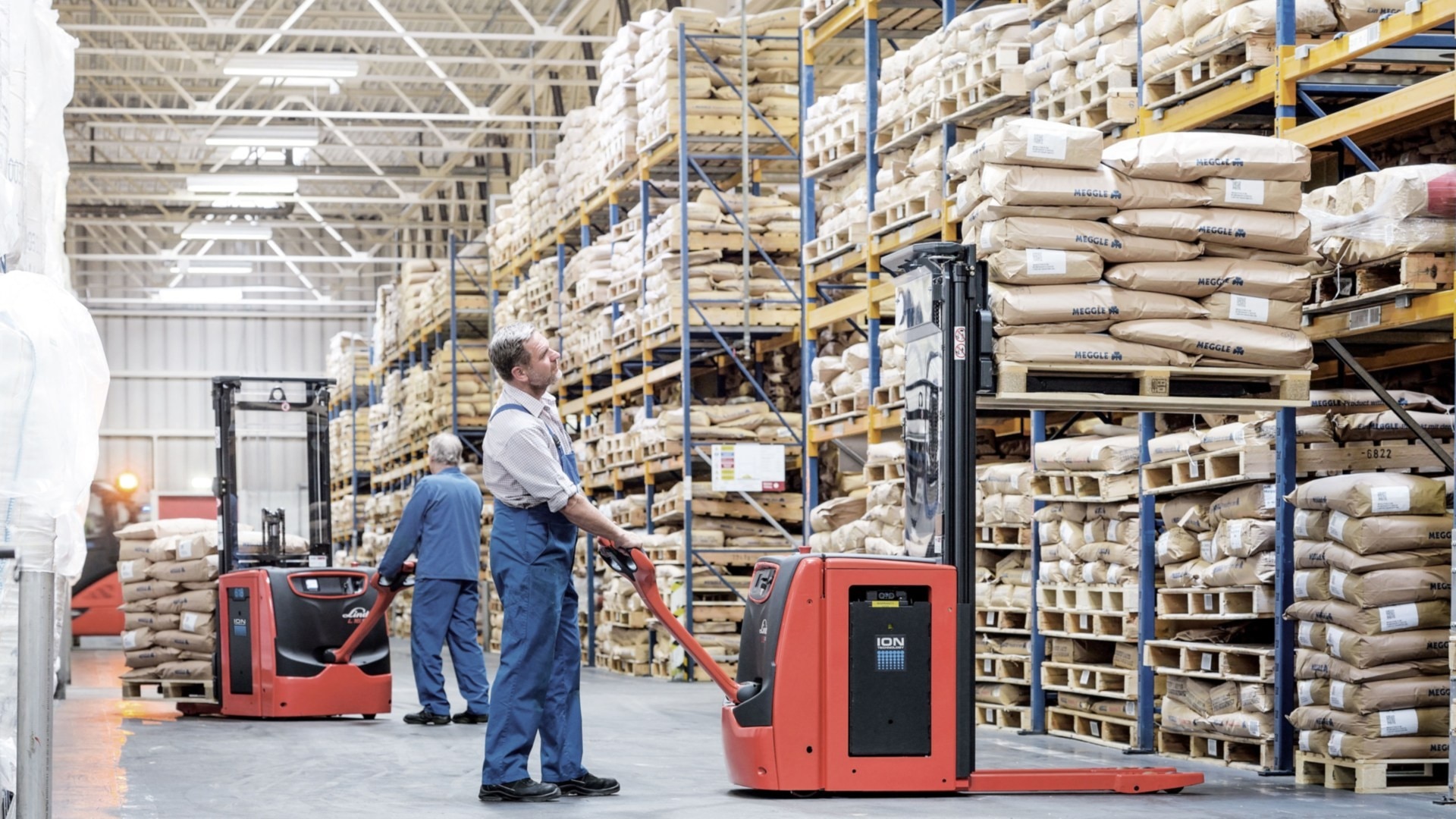

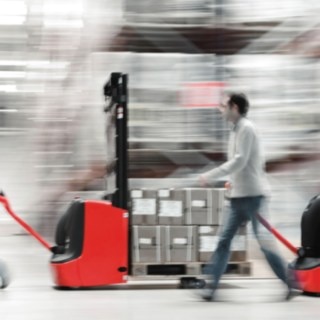

Pedestrian pallet stackers, where the operator controls the truck with the tiller while walking behind or alongside, are an economical solution for transporting loads over short distances. Thanks to the electric motor, goods can be lifted safely and precisely to the required height. In operations where excellent manoeuvrability and a small turning radius are required, pedestrian trucks really come into their own. Whether in workshops, refrigerated warehouses, greenhouses, garden centres, or supermarkets, transporting goods is one of the specialities of the pedestrian pallet stacker.

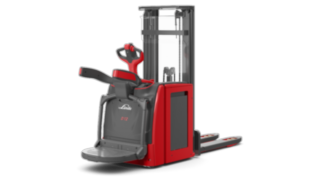

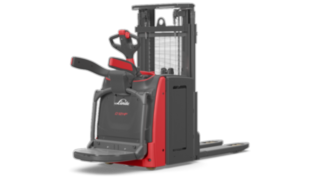

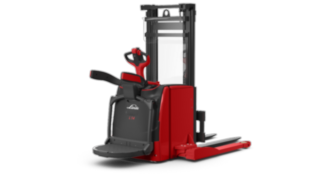

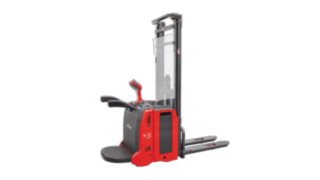

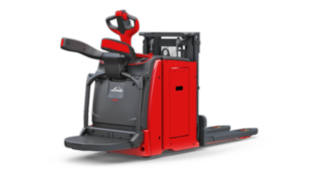

Pallet stackers with folding platform
Pallet stackers that can be used either as a pedestrian or ride-on truck are ideal for storing and retrieving medium-weight loads over short to medium distances. The trucks with a folding stand-on platform are particularly efficient in areas such as external warehouses, delivery areas, and indoor warehouses where long distances are not covered but medium-heavy loads have to be transported. Depending on the required lifting height, load capacity, and door clearance, Linde has the ideal model in its portfolio.

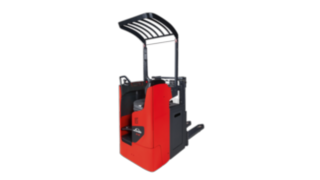

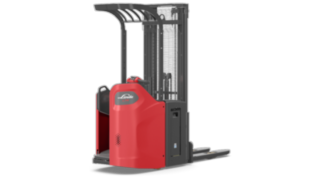

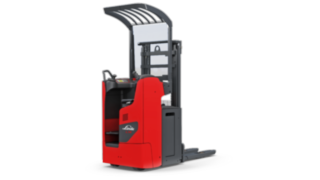

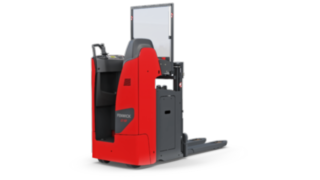

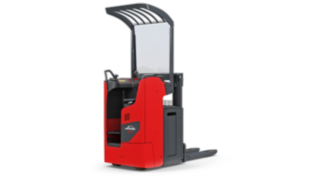

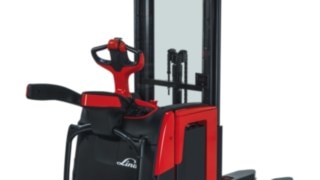

Platform pallet stackers
Platform pallet stackers make light work of ground-level transport over longer distances, as well as the lifting and lowering of loads. Lithium-ion batteries are available as an option and can be charged easily and quickly at any socket. Thanks to their endurance and the ergonomic standing or seated workplace, platform pallet stackers are particularly suitable for transporting high loads over longer distances, for example in external warehouses and delivery areas, as well as for loading and unloading trucks, and on production lines. Depending on the required lifting height, load capacity, and local conditions, the pallet stackers can be equipped with a double or triplex mast.
Linde pallet stackers are suitable for a wide range of applications, from goods handling in warehouses with narrow aisles to storing bulky goods and stacking boxes in racking systems. Linde offers pallet stackers with different lifting heights for every application. Linde pallet stackers are available in two versions to suit the required application: classic pedestrian trucks with a tiller and ride-on models with a standing or seated platform.
Features
SAFETY
Pallet stackers have to move quickly from A to B, manoeuvre around narrow aisles, and transport heavy loads – and the safety of the operator is always the top priority when doing so. The long, low-mounted tiller on the pedestrian trucks ensures sufficient safety clearance between the truck and the operator at all times. The end-of-stroke resistance prevents the tiller from jerking back when released. The tiller handle design protects the operator’s hands, while the low-lying chassis prevents potential foot injuries. The optimized mast view ensures safe manoeuvring. The Linde Safety Speed safety system automatically adapts the travel speed in relation to the tiller angle. The speed is automatically reduced when cornering and the truck brakes automatically when the drive switch is released.
ERGONOMICS
Ergonomics play a particularly important role in pedestrian pallet stackers. These trucks are often used for demanding jobs over short to medium distances. In order for operators to be able to steer the pallet stacker with as little physical exertion as possible, Linde uses servo-assisted electric steering in many models. This increases the manoeuvrability of the trucks, making load handling easier. A high-torque motor on the pallet stacker ensures rapid acceleration, which can be increased with a booster effect if required. This enables the trucks to perform safely and reliably even in highly demanding operating situations, such as on steep ramps.
HANDLING
Compact and versatile: the most accurate way to describe Linde pallet stackers. The trucks are built for narrow aisles and tight storage areas. This is all thanks to their space-saving dimensions and manoeuvrable tiller. The tailor-made technical equipment provides additional support: With the creep speed function, the pallet stacker can be manoeuvred at 1.5 km/h with the tiller upright – ideal for very tight spaces. The Soft Landing function prevents wear and tear on the fork and protects the load when lowering. On top of this, Linde has also equipped the pallet stackers with an optional initial lift. This makes it easier to manage loading ramps, inclines, and uneven ground.
SERVICE
Linde pallet stackers combine maximum availability with minimal maintenance costs. The trucks boast an exceptionally stable construction with all electrical parts securely installed. The robust chassis and the maintenance-free AC motor also increase the service life. Depending on the type of use, the truck only needs to be serviced once a year. Thanks to the sophisticated truck design and technology, service technicians can carry out maintenance quickly and easily. All relevant truck components are easily accessible behind the motor cover. All service data can be quickly viewed on a laptop via the CAN bus system. This data can be used to set the performance parameters to suit the type of operation of the truck.
CONNECTIVITY
The fleet management system Linde connect provides access to all the information you need. A digital multi-function display keeps the operator informed of the current truck status at all times. The battery charge status, operating hours, and maintenance status can be viewed at a glance on the display. A warning light indicates when maintenance is required. Linde connect makes fleet management more cost-effective and increases the availability of each individual truck.
Overview of the Advantages of a Pallet Stacker
Tailor-made pallet stackers
Every storage and retrieval or transport operation is different. That’s why Linde pallet stackers are offered with many different equipment variants as standard. Among other options, customers can choose from different operating concepts for pedestrian or platform versions, as well as a range of lift mast designs. No matter the application, there is at least one suitable solution available. Linde also works with its sales partners to offer individual custom-made products or additional equipment.
FAQ – Frequently Asked Questions about pallet stackers
What types of pallet stacker are there?
Linde offers pallet stackers in three different versions, which differ mainly in terms of application and load capacity. Depending on the area of application and requirements, the following types of pallet stacker can be selected: pedestrian pallet stacker, pallet stacker with folding platform, or pallet stacker with fixed platform.
Where can pallet stackers be used?
Pallet stackers are suitable for a wide variety of applications. Depending on the design, they can be used in small and large warehouses, as well as in outdoor areas and for loading and unloading other trucks. Pallet stackers are a simple, compact solution for transporting goods and pallets that need to be lifted and lowered over heights of several metres.
What is the initial lift?
The initial lift allows for greater ground clearance. This makes it easy to transport and manoeuvre loads, even on inclines, over loading ramps, and on uneven terrain. Only the support arms of the truck are raised by the initial lift.
How high can pallet stackers lift pallets?
The most powerful models can pick up and store two pallets at the same time. They are able to reach lifting heights of up to 6216 mm and have a load capacity of up to 2000 kg.
